Selecting a silicone polymer involves strict manufacturing and commercial calculations. It is rarely just a chemical decision. Make the wrong choice early in the design phase. You will likely face high scrap rates, unscalable tooling costs, or severe compliance failures later. Engineers often struggle to align raw material properties directly to high-volume production realities.
This guide bypasses basic, top-of-funnel definitions. We directly evaluate specific silicone systems. You will see how they align with your chosen manufacturing process, whether you use injection molding, compression molding, or extrusion. The goal is simple.
You need a clear framework to match material rheology and curing profiles. We will align these factors with your part geometry, required production volume, and industry compliance standards. You will learn exactly how to weigh upfront investments against long-term operational efficiency.
Material selection cannot happen in a vacuum. Part geometry and required production volume dictate your manufacturing process. The process then strictly limits your material options. You cannot force a highly viscous material into a micro-molding tool. You also cannot extrude a thin liquid. Engineers must let the physical demands of the product guide the chemical selection.
Viscosity is the most immediate differentiator between material families. We measure this resistance to flow to determine processing methods. Consider High Consistency Rubber (HCR) and High-Temperature Vulcanizing (HTV) silicone. They possess a heavy, clay-like or peanut-butter consistency. Operators must physically handle, mill, and cut these materials. Liquid Silicone Rubber (LSR) behaves entirely differently. It exists in a pumpable, liquid state. Equipment pumps LSR directly from drums into injection barrels in a closed-loop system.
Curing chemistry impacts both production speed and final part purity. Industry standards typically rely on two primary vulcanization systems. Platinum-cured systems utilize an addition reaction. They cure rapidly, produce no harmful byproducts, and offer superior purity. Medical and food-grade applications heavily favor this method.
Peroxide-cured systems rely on a free-radical reaction. These systems are often more economical. However, they carry inherent off-gassing risks. Peroxide curing leaves volatile organic acids behind. Manufacturers must implement secondary post-baking steps to remove these residues. This extra step adds time and energy expenses to the production cycle.
Complex geometries require advanced material solutions. Industry experts position LSR for injection molding as the dominant choice for intricate designs. It excels in micro-molding, thin-wall sections, and flash-less production environments. The low viscosity allows the material to fill microscopic mold cavities before vulcanization begins.
LSR delivers exceptional performance metrics for high-volume manufacturing. Rapid curing stands out as its primary advantage. The material vulcanizes in seconds when exposed to heated molds. This speed enables highly automated, high-yield production runs. You can produce thousands of parts per hour using multi-cavity tools.
Tolerances also set LSR apart. It achieves exceptionally tight dimensional stability compared to traditional organic rubbers. You can consistently hold tolerances down to thousandths of an inch. Shrinkage remains predictable and uniform.
Despite the operational advantages, LSR requires significant capital. Tooling costs represent the largest barrier to entry. Cold-runner molds require precision CNC machining. The steel must withstand high clamping forces to prevent flash. This high CapEx means LSR is rarely viable for short runs or prototyping. You need high volumes to amortize the initial tooling investment.
Processing demands also require specialized equipment. You need dedicated two-part pumping systems. These systems mix the base and catalyst at a strict 1:1 ratio. Strict temperature controls remain mandatory. If the injection barrel gets too warm, the material cures prematurely. This causes costly downtime and equipment cleaning.

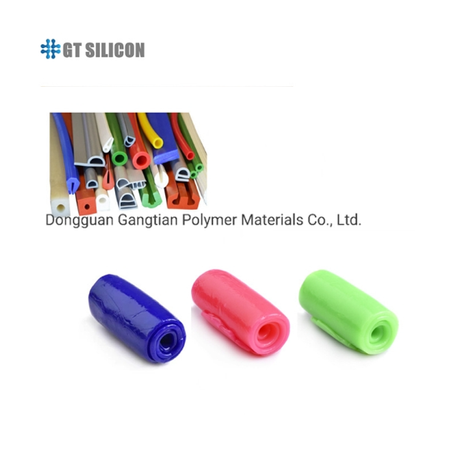

Many applications do not require micro-precision. We evaluate HCR silicone as the heavy-duty workhorse of the industry. It dominates continuous cross-section manufacturing. Think of tubing, weather stripping, and large, simple molded parts. The high molecular weight gives it distinct structural advantages before curing.
Extrusion demands specific material behaviors. High "green strength" refers to pre-cure physical stability. This trait makes HTV for extrusion mandatory for continuous profiles. As the raw material exits the extrusion die, it must hold its shape. It travels through free air or a curing oven before vulcanization finishes. Without high green strength, the profile would sag, collapse, or deform instantly.
HCR also provides immense utility for lower-volume production. Compression molding uses simpler, cheaper tooling. You place a pre-weighed piece of catalyzed HCR directly into a heated mold cavity. The press closes, forcing the rubber into the shape. You bypass the expensive cold-runner systems of LSR. This makes HCR ideal for pilot runs, large gaskets, and heavy-duty seals.
HCR processes rely heavily on manual labor. Milling, catalyzing, and pre-forming operations add significant labor costs. Operators must physically mix colorants and curing agents into the stiff rubber using two-roll mills. This introduces potential human error and contamination risks.
Cycle times also trail behind liquid systems. HCR features slower vulcanization rates. A molded HCR part might take several minutes to cure. An LSR part takes seconds. This drastically reduces overall daily throughput for molded components.
Engineers need a structured approach to decision-making. You must balance unit economics, geometry, and compliance requirements. Every project has a unique break-even threshold. We typically see this threshold around 10,000 to 50,000 annual parts. Below this volume, cheaper tooling favors HCR. Above this volume, automated speed makes LSR the undisputed financial winner.
Always align the polymer to the physical design constraints. Assign HCR to uniform profiles, heavy cross-sections, and simple O-rings. The stiff nature of the raw material handles these shapes perfectly. Conversely, assign LSR to highly intricate geometries. Undercuts, fragile thin walls, and overmolding require liquid injection. LSR effortlessly flows over thermoplastic substrates to create multi-material components.
Medical and food-contact sectors demand strict E-E-A-T compliance. Both materials can utilize platinum curing to achieve biocompatibility. However, LSR often wins in cleanroom environments. It utilizes a completely closed-loop process. Material travels from a sealed drum directly into a sealed mold. HCR requires manual milling and handling. This open-air processing increases the risk of particulate contamination.
| Feature / Requirement | LSR (Liquid Silicone Rubber) | HCR / HTV (High Consistency) |
|---|---|---|
| Primary Process | Injection Molding | Extrusion, Compression Molding |
| Tooling Investment | High (Complex cold-runner molds) | Low to Medium (Simpler steel tools) |
| Cycle Time | Extremely Fast (Seconds) | Slower (Minutes) |
| Automation Level | High (Closed-loop pumping) | Low (Manual milling and pre-forming) |
| Best For | Micro-molding, tight tolerances | Tubing, continuous profiles, large seals |
You must specify the correct silicone molding material early. A late-stage pivot from HCR to LSR forces a complete tooling redesign. It also invalidates previous mechanical testing data.
Choosing the best silicone type remains futile without the right partner. The manufacturing partner must possess specific equipment. They must also enforce rigorous quality controls for your chosen material. Many contract manufacturers suffer from equipment bias. They push you toward the only process they actually own. You need a partner capable of objective engineering.
First, evaluate their true manufacturing capabilities. Do they have dedicated equipment for both extrusion and injection molding? If a vendor only owns compression presses, they will recommend HCR. They will do this even if your geometry demands liquid injection. A verified silicone supplier offers multiple processing avenues to ensure unbiased design support.
Second, audit their cleanroom and traceability standards. Medical, pharmaceutical, and food-grade applications require ISO 7 or ISO 8 cleanroom manufacturing. Request documentation proving complete lot traceability. You must trace every finished part back to the original raw polymer batch.
Finally, demand proof of advanced defect-mitigation practices. Ask how they control common manufacturing flaws. How do they prevent flash on LSR parts? How do they eliminate short shots in complex cavities? How do they calculate and control post-cure shrinkage in extruded tubing? An authoritative manufacturer will provide documented standard operating procedures (SOPs) for these exact issues.
There is no universal best option in polymer manufacturing. LSR wins decisively on precision and high-volume automation. HTV and HCR win on continuous profile extrusion and low-volume tooling efficiency. Your choice dictates your capital expenditure, your daily output, and your regulatory compliance.
Take immediate action to lock in your production strategy. Finalize your 3D CAD models to identify undercuts and wall thicknesses. Calculate your realistic three-year volume projections. Finally, engage a qualified manufacturer for a Design for Manufacturability (DFM) review. This review will lock in the exact material specification before you purchase expensive mold steel.
A: Yes, but it is highly uncommon. Manufacturers occasionally use specialized vertical extrusion setups for LSR. However, HCR and HTV remain the undisputed industry standards for extrusion. Their high pre-cure structural integrity prevents the profile from sagging or deforming as it exits the die.
A: It depends on how you measure cost. Raw HCR material is often cheaper by the pound. However, LSR becomes significantly cheaper per part at high volumes. LSR utilizes fast, zero-labor automation, which offsets its higher initial tooling and raw material costs over time.
A: Medical grade status relies on rigorous biocompatibility testing, such as USP Class VI or ISO 10993 standards. It also requires a pristine manufacturing environment, usually an ISO-certified cleanroom. Both HCR and LSR can achieve medical-grade certification if processed correctly.
