Selecting the wrong polymer for industrial or medical components carries heavy consequences. A single degraded seal can easily halt an entire assembly line. You risk premature part failure, strict compliance breaches, and highly expensive product recalls. Engineers routinely struggle during the design phase. They must balance upfront expenses against long-term operational reliability. Silicone elastomers offer unique chemical structures to resolve extreme temperature and durability challenges. However, they naturally carry a higher initial material price than standard organic rubbers. You need to know if this premium truly justifies the investment.
This guide examines the fundamental chemical mechanics and performance thresholds of these advanced materials. We also explore the critical commercial considerations required to justify specifying silicone for your next production run. You will learn how to properly evaluate organic alternatives. You will also discover how to secure the right customized formulation for commercial success.
Chemical Advantage: A specialized silicon-oxygen backbone provides innate resistance to extreme temperatures, UV, and ozone degradation.
Performance ROI: High initial tooling and material costs are typically offset by longer operational lifecycles and reduced maintenance downtime.
Versatility: Formulations can be engineered for specific durometers, tear strengths, and compliance standards (e.g., FDA, USP Class VI).
Sourcing: Partnering with a vetted industrial silicone supplier is critical for navigating the complexities of custom compounding and scalable manufacturing methods like Liquid Injection Molding (LIM).
Organic rubber relies primarily on carbon-to-carbon bonds. These standard bonds degrade quickly under environmental stress. In contrast, silicone features a highly robust siloxane backbone. It consists of alternating silicon and oxygen atoms. This fundamental chemical difference drives superior material performance. It allows the polymer to remain stable across widely varying conditions.
The silicon-to-oxygen bond requires significantly more energy to break. Standard carbon bonds break near 347 kJ/mol. Silicon-oxygen bonds demand roughly 452 kJ/mol to separate. This high bond energy forms the scientific basis for the material's chemical inertness. It directly prevents environmental degradation. You get a material immune to oxidation and thermal breakdown.
Raw polymer chains must undergo cross-linking to become useful. Manufacturers typically use either peroxide or platinum curing systems. This vulcanization process transitions the material. It changes from a sticky, malleable state into a durable, shape-holding elastomer. Platinum curing systems are highly preferred for medical applications. They leave behind absolutely no toxic byproducts.
Manufacturers rarely use raw silicone gum alone. The base material lacks sufficient physical strength for industrial use. Engineers must incorporate reinforcing fillers. Fumed silica is a very common additive. These specialized fillers dramatically improve tear strength and tensile durability. Additional additives adjust the final color, flame retardancy, and thermal conductivity. You must tailor the compound to achieve your exact target mechanical properties.
Engineers consistently choose this material for thermal stability. Uncompromising silicone heat resistance ensures peak performance in harsh environments. The standard operational temperature range spans from -50°C to +250°C. Specialty grades push these limits even higher. Standard organic rubbers become dangerously brittle in freezing conditions. They also melt or outgas under extreme heat. Silicone maintains complete physical stability without degradation or harmful outgassing.
Industrial sealing requires materials to bounce back after compression. Permanent silicone flexibility allows the material to absorb constant mechanical stress. It easily maintains a tight, leak-proof seal over many years. The material quickly returns to its original shape after heavy compression. This low compression set remains vital for automotive and aerospace gaskets. They face continuous pressure changes daily.
One of the top silicone elastomer benefits is supreme environmental inertness. The material easily resists UV radiation, ozone exposure, and corona discharge. Outdoor weathering simply does not degrade the polymer structure. Standard rubbers often crack under prolonged ozone exposure. However, engineers must remain aware of a crucial limitation. Standard formulations are not resistant to concentrated solvents, oils, or fuels. You must specify a fluorinated silicone variant to handle aggressive petrochemicals.
Medical and food industries require absolute material purity. Silicone completely lacks volatile plasticizers. It features incredibly low toxicity and innate hypoallergenic properties. It does not support bacterial growth naturally. These characteristics make it mandatory for medical implants and food-grade tubing. It seamlessly meets strict FDA and USP Class VI compliance standards.
You can find silicone rubber applications across nearly every advanced manufacturing sector today. Its unique properties solve specific industrial challenges.
Medical & Healthcare: Medical professionals rely on this material for fluid tubing, surgical seals, and implantable devices. These sensitive parts require strict cleanroom manufacturing. They must pass rigorous USP Class VI compliance testing to ensure patient safety.
Automotive & Aerospace: Modern vehicles utilize silicone for engine gaskets, vibration dampeners, and electrical connector seals. Rapid thermal cycling and harsh environmental exposure cause standard organic rubbers to fail prematurely.
Consumer Electronics & Appliances: Engineers specify this polymer for interactive keypads, thermal interface materials, and waterproof sealing components. These applications require high precision tolerances. They also demand absolute moisture protection for sensitive internal circuits.
Energy & Power Transmission: The power sector uses silicone for high-voltage insulators and durable utility cables. The material leverages excellent dielectric properties. It also provides outstanding arc resistance during power surges.
You must carefully compare silicone against EPDM, Nitrile, and natural rubber. You should base this evaluation on long-term reliability and operational efficiency. Organic rubbers present a cheaper upfront cost. However, frequent replacement cycles and maintenance downtime quickly consume those initial savings. You need to calculate the true lifecycle value of the component.
Comparison Matrix: Material Performance Thresholds
Material Type | Thermal Range | Weather & Ozone Resistance | Oil & Fuel Resistance | Primary Strength |
|---|---|---|---|---|
Silicone | -50°C to +250°C | Excellent | Poor (unless fluorinated) | Extreme temperatures and medical purity |
EPDM | -40°C to +150°C | Excellent | Poor | General outdoor weathering |
Nitrile (NBR) | -30°C to +100°C | Fair | Excellent | Petrochemical and oil sealing |
Natural Rubber | -50°C to +80°C | Poor | Poor | High abrasion and vibration dampening |
Use the following parameters to guide your final material specification process.
Choose Silicone when: Your application involves extreme thermal cycling. The component requires strict FDA or medical compliance. The part demands long-term outdoor weatherability without cracking.
Choose Alternatives when: Your application requires high resistance to petrochemicals and fuels. Nitrile performs much better here. You face high-abrasion environments without the option for custom formulation. You face strict bottom-line budget constraints for highly disposable, non-critical parts.

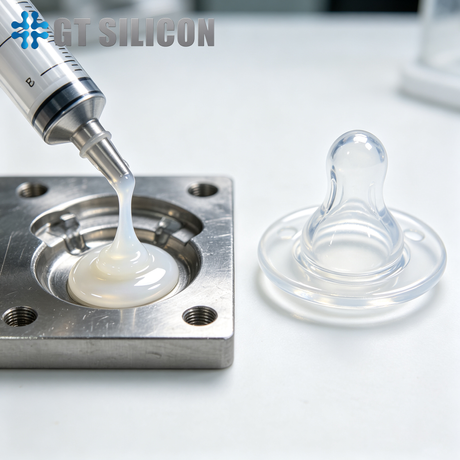

You must select the correct physical state of the material for production. High Consistency Rubber (HCR) resembles a thick clay. It works perfectly for extrusion processes and calendering flat sheets. Liquid Silicone Rubber (LSR) flows like a thick syrup. It is ideal for high-volume, highly repeatable injection molding. LSR allows for faster cure times and precise micro-molding capabilities.
Your chosen industrial silicone supplier must offer deep engineering expertise. Assess whether they can engineer entirely custom formulations. They need to balance specific durometers, tear strength requirements, and exact color matching. Avoid suppliers relying strictly on basic off-the-shelf materials. Complex industrial applications usually require tailored compounding for optimal performance.
You must verify their active quality certifications. Look for ISO 9001 for general manufacturing. Demand ISO 13485 if you produce medical devices. Your supplier must maintain robust material traceability. They need documented tracking from the raw polymer batch down to the finished good. This strict traceability is mandatory for regulatory audits.
Evaluate their internal engineering capacity. They should actively support early-stage tooling and low-volume prototypes. This allows you to test designs before committing large budgets. Once the prototype passes inspection, they must smoothly scale up. They should effortlessly transition to multi-cavity, high-volume production without dropping quality.
Analyze their raw material sourcing strategies closely. Global supply chains remain highly unpredictable. Your partner should maintain distinct raw material redundancies. Dual sourcing strategies help mitigate the risks of global silicone shortages. It also protects your production schedule during unexpected force majeure events.
Silicone elastomers provide immense strategic value for high-stakes manufacturing applications. They actively mitigate the risk of catastrophic component failure. Their unique siloxane backbone ensures unmatched thermal stability and environmental resistance. Material costs are certainly higher upfront compared to standard organic rubber. However, the prevention of field failures always delivers a superior operational return on investment. You eliminate expensive downtime and protect your brand reputation.
Your next step is to evaluate your specific environmental requirements. Identify your thermal limits, chemical exposures, and regulatory needs. We invite you to submit your application specifications or CAD files to our engineering team today. We will provide a comprehensive material recommendation and a detailed manufacturability analysis.
A: LSR is a two-part liquid pumped directly into heated injection molds. It cures rapidly and suits high-volume, automated production of intricate parts. HCR is a thick, gum-like solid. Workers process it through traditional milling machines. HCR is best suited for extrusion, calendering, and lower-volume compression molding.
A: Standard silicone elastomers are not resistant to petrochemicals. They will swell and lose mechanical strength when exposed to standard oils and fuels. You must specify fluorosilicone for these exact environments. Fluorosilicone adds fluorine to the polymer chain to repel harsh automotive and aviation fuels effectively.
A: Silicone components can last decades depending on the operating environment. They resist ozone, UV rays, and extreme temperatures that normally degrade organic rubber in just a few years. Proper custom formulation further extends this lifespan. This incredible durability drastically reduces your required maintenance intervals.
A: Material purity grades, such as medical USP Class VI, increase base costs. Advanced additives for high tear strength or thermal conductivity also add expense. Additionally, complex geometries require precision steel tooling. Low-volume runs carry higher per-part costs compared to scaled, multi-cavity automated injection molding.
