Views: 66 Author: Site Editor Publish Time: 2026-05-30 Origin: Site
Htv Silicone is a high-temperature vulcanizing elastomer used in sealing, insulation, automotive assemblies, electronics, healthcare-related parts, appliance components, and precision molded products. Htv Silicone is valued in industrial production because it combines heat resistance, elastic recovery, dielectric stability, weather resistance, and long service life under repeated mechanical stress. Compared with many organic rubbers, Htv Silicone maintains flexibility across a wide temperature range and resists ozone, UV, oxidation, compression, and thermal aging. Selecting Htv Silicone is not only a material decision; it also involves hardness, curing chemistry, filler reinforcement, post-curing, regulatory expectations, processing method, and long-term reliability targets.
● Htv Silicone suits heat, insulation, weathering, and flexibility requirements.
● Htv Silicone performance depends on formulation, curing system, and processing control.
● Peroxide Htv Silicone and platinum Htv Silicone serve different cleanliness and performance needs.
● Htv Silicone specifications should reflect real service temperature, compression, fluids, and aging.
● Quality control is essential for stable Htv Silicone molding, extrusion, and calendering.
● Cost evaluation should include tooling, scrap rate, validation, and long-term reliability.
Htv Silicone is built on a siloxane backbone, and the Si-O structure gives Htv Silicone stronger heat stability than many carbon-chain elastomers. This molecular structure allows Htv Silicone to retain usable flexibility after repeated exposure to elevated temperatures. In gaskets, tubing, insulation sleeves, and molded seals, Htv Silicone reduces the risk of hardening, cracking, and thermal embrittlement.
Htv Silicone can deform under pressure and recover after compression, stretching, or bending, which is essential for seals and vibration-resistant parts. The compression set behavior of Htv Silicone depends on polymer grade, filler system, curing level, and post-curing conditions. A balanced Htv Silicone compound must provide enough softness for sealing while maintaining tear resistance and dimensional stability.
Htv Silicone is widely used for electrical insulation because its dielectric properties remain stable under heat and humidity. Outdoor Htv Silicone components resist ozone, UV radiation, and oxidation better than many conventional rubbers. This makes Htv Silicone suitable for cable accessories, connector seals, sensor housings, power components, and electrical protection parts.
Htv Silicone can be customized by hardness, tensile strength, elongation, tear resistance, thermal grade, and dielectric behavior. The performance profile of Htv Silicone depends on polymer viscosity, reinforcing silica, pigments, additives, curing chemistry, and post-curing. Industrial Htv Silicone should be evaluated by both initial values and aged performance because long-term stability often determines actual service life.
Chart 1: Typical Htv Silicone Property Profile | Common Industrial Range | Engineering Meaning |
Hardness | 20–80 Shore A | Affects sealing pressure, assembly force, and part feel |
Tensile strength | 6–12 MPa | Indicates resistance to pulling and molded-part rupture |
Elongation | 250–700% | Supports deformation, flexibility, and installation tolerance |
Service temperature | -50°C to 200°C+ | Supports heat cycling and cold flexibility |
Compression set | Formulation-dependent | Critical for gaskets, O-rings, and sealing profiles |
Dielectric strength | High | Suitable for insulation and electrical sealing |
Htv Silicone is used in automotive, electronics, energy, appliance, healthcare-related, food-contact, and general industrial systems. In automotive applications, Htv Silicone appears in connector seals, spark plug boots, turbocharger hoses, vibration parts, and thermal shielding components. In electrical and electronic assemblies, Htv Silicone is used for keypad bases, insulation sleeves, wire seals, flexible barriers, and heat-resistant interface parts.
Htv Silicone is not always the strongest elastomer, but it provides a rare balance of heat resistance, flexibility, weatherability, and electrical insulation. Compared with EPDM, Htv Silicone usually performs better at high temperature and in dielectric applications, while EPDM may suit some water-sealing uses. Compared with fluororubber, Htv Silicone generally offers better low-temperature flexibility, while fluororubber may provide stronger fuel and chemical resistance.
Chart 2: Htv Silicone Compared with Common Elastomers | Htv Silicone | EPDM | NBR | FKM |
Heat resistance | High | Medium | Medium-low | Very high |
Low-temperature flexibility | High | Good | Moderate | Moderate |
Oil resistance | Moderate | Poor | Good | Excellent |
Weather resistance | Excellent | Excellent | Moderate | Excellent |
Electrical insulation | Excellent | Good | Moderate | Good |
Common selection logic | Heat, insulation, flexibility | Water and weather sealing | Oil-contact parts | Fuel and chemical exposure |
Htv Silicone is commonly processed through compression molding for gaskets, pads, sheets, seals, and custom molded parts. In compression molding, Htv Silicone is placed into a heated cavity, then pressure and temperature drive vulcanization while the material fills the geometry. Transfer molding gives Htv Silicone better flow control for complex shapes, insert-molded parts, and components requiring tighter dimensional consistency.

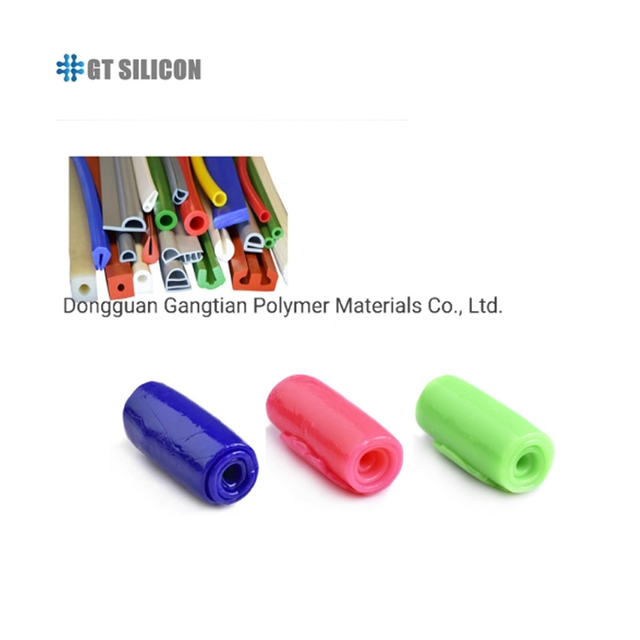

Htv Silicone extrusion is used for continuous products such as tubing, strips, cords, sponge profiles, and sealing profiles. Extruded Htv Silicone must maintain stable viscosity, surface quality, cure speed, and dimensional consistency throughout production. Reliable Htv Silicone extrusion depends on compound cleanliness, die design, temperature balance, curing tunnel control, and downstream cutting or coiling accuracy.
Htv Silicone can be calendered into sheets, films, reinforced layers, and coated substrates for insulation, thermal pads, and fabrication processes. Calendered Htv Silicone requires close control of thickness tolerance, surface smoothness, air entrapment, and filler dispersion. In technical sheet applications, Htv Silicone performance is influenced by raw material quality, reinforcement fabric, release liner stability, and post-curing consistency.
Peroxide-cured Htv Silicone is common in industrial manufacturing because it offers broad formulation flexibility and robust processing behavior. Different peroxide systems affect scorch safety, cure speed, odor, byproduct profile, and final mechanical properties of Htv Silicone. Post-curing is often applied to peroxide Htv Silicone to reduce volatile residues and improve performance in thermal, food-contact, or healthcare-related applications.
Platinum-cured Htv Silicone is selected when cleaner curing, lower byproducts, and higher purity are required. This Htv Silicone type is often used in transparent tubing, food-contact parts, baby care products, healthcare-related parts, and precision molded components. Platinum Htv Silicone can be sensitive to catalyst poisoning from sulfur, amines, organotin compounds, and certain pigments, so production discipline must be stricter.
Htv Silicone gains much of its mechanical strength from reinforcing silica, which improves tensile strength, tear strength, and dimensional stability. Additives may adjust Htv Silicone heat resistance, flame retardancy, color, conductivity, oil bleeding, antistatic behavior, or processability. Each additive package must be evaluated carefully because improving one Htv Silicone property can reduce another, such as transparency, elongation, compression set, or purity.
Htv Silicone hardness should be selected according to sealing pressure, assembly method, deformation space, and functional requirements. Softer Htv Silicone may seal better under low pressure, but it can tear more easily or deform excessively under load. Harder Htv Silicone can improve dimensional stability and handling, yet it may require higher assembly force and may not seal uneven surfaces effectively.
Htv Silicone specifications should include not only peak temperature but also exposure duration, thermal cycling, humidity, chemical contact, oils, steam, UV, and mechanical load. A Htv Silicone part may survive short-term heat but fail during long-term compression at elevated temperature if compression set is not controlled. Validation should test Htv Silicone under realistic service conditions instead of relying only on room-temperature laboratory data.
Htv Silicone may need to meet food-contact, healthcare-related, flame-retardant, RoHS, REACH, or regional industry requirements. For sensitive applications, Htv Silicone documentation can include safety information, test reports, traceability records, and controlled formulation statements. Cleanliness is especially important for transparent Htv Silicone, electrical insulation parts, precision molded parts, and components used in controlled production environments.
Htv Silicone quality control starts with incoming compound verification, including appearance, hardness trend, rheology, cure behavior, and contamination inspection. Batch variation in Htv Silicone can cause molding defects, dimensional drift, surface marks, undercure, overcure, or inconsistent mechanical performance. Stable Htv Silicone production requires controlled storage, FIFO handling, temperature management, and traceability from compound preparation to finished inspection.
Htv Silicone molding and extrusion defects often come from poor temperature balance, incorrect pressure, trapped air, insufficient cure time, or contamination. Common Htv Silicone issues include bubbles, scorch marks, flash, incomplete filling, surface blooming, tearing during demolding, and shrinkage deviation. Defect reduction requires disciplined control of mold design, venting, compound preparation, cure curve, operator method, and inspection criteria.
Htv Silicone validation typically includes hardness, tensile strength, elongation, tear strength, compression set, aging, dielectric performance, and dimensional inspection. For sealing components, Htv Silicone should be tested after compression aging because retained sealing force is often more important than initial tensile strength. For electrical parts, Htv Silicone should be evaluated under heat and humidity because insulation performance must remain stable throughout service life.
Htv Silicone cost is influenced by polymer grade, silica type, pigment, curing system, additive package, processing method, tooling complexity, and inspection requirements. High-purity Htv Silicone, platinum-cured Htv Silicone, flame-retardant Htv Silicone, and specialty conductive Htv Silicone often carry higher production costs due to formulation and quality-control complexity. A cost-effective Htv Silicone project avoids over-specification while protecting the safety margin required by the application.
Htv Silicone part design must account for shrinkage, parting lines, flash control, wall thickness, venting, demolding angle, and insert bonding conditions. Complex Htv Silicone geometries can increase scrap rate if the design creates trapped air, uneven cure, or difficult demolding zones. Early coordination between product engineering and mold engineering improves Htv Silicone manufacturability and reduces later changes in tooling, process windows, and inspection rules.
Htv Silicone should be evaluated according to total performance risk rather than initial material price alone. A low-cost Htv Silicone compound may pass basic testing but fail faster under heat aging, compression, UV exposure, or repeated assembly stress. In critical applications, a higher-grade Htv Silicone formulation can reduce leakage risk, field failure, production interruption, and replacement frequency.
Htv Silicone remains one of the most versatile elastomer materials for industrial parts requiring heat resistance, electrical insulation, weather stability, and long-term elastic performance. Successful Htv Silicone selection depends on matching formulation, curing system, processing method, testing plan, and application environment instead of relying on generic material labels. For molded, extruded, calendered, or specialty Htv Silicone components, material knowledge and production control determine whether the final part performs reliably in actual service. Dongguan Gangtian Polymer Materials Co., Ltd. focuses on Htv Silicone material development and application-oriented elastomer solutions where consistency, engineering detail, and manufacturing discipline are essential.
Htv Silicone is mainly used for heat-resistant seals, insulation parts, tubing, profiles, molded gaskets, keypads, and flexible industrial components. Htv Silicone is selected when the part must withstand thermal aging, compression, UV, ozone, and electrical stress. The exact application depends on hardness, curing system, purity level, mechanical strength, and operating environment.
Htv Silicone is usually supplied as high-consistency rubber and processed by compression molding, transfer molding, extrusion, or calendering. Liquid silicone rubber has lower viscosity and is commonly processed by injection molding for high-precision automated production. Htv Silicone is often preferred for profiles, sheets, larger molded parts, and applications requiring robust compound customization.
Platinum-cured Htv Silicone provides cleaner curing and lower byproducts, but it is not automatically the best choice for every project. Peroxide-cured Htv Silicone remains widely used because it offers strong processing flexibility and cost efficiency for many industrial parts. The better option depends on purity requirements, application standards, processing method, production environment, and final performance targets.
Htv Silicone failure can result from incorrect hardness, poor curing, excessive compression set, unsuitable chemical exposure, contamination, or unrealistic service assumptions. Processing defects such as bubbles, undercure, flash, tearing, and dimensional variation can also reduce Htv Silicone reliability. Strong validation should combine mechanical testing, aging tests, compression tests, and environment-specific performance checks.
An Htv Silicone grade should be specified by hardness, tensile strength, elongation, tear strength, compression set, temperature range, curing system, color, regulatory needs, and application environment. The specification should also define test methods, acceptance limits, aging conditions, and dimensional requirements. A complete Htv Silicone specification reduces ambiguity during quotation, tooling, production, inspection, and long-term quality control.
