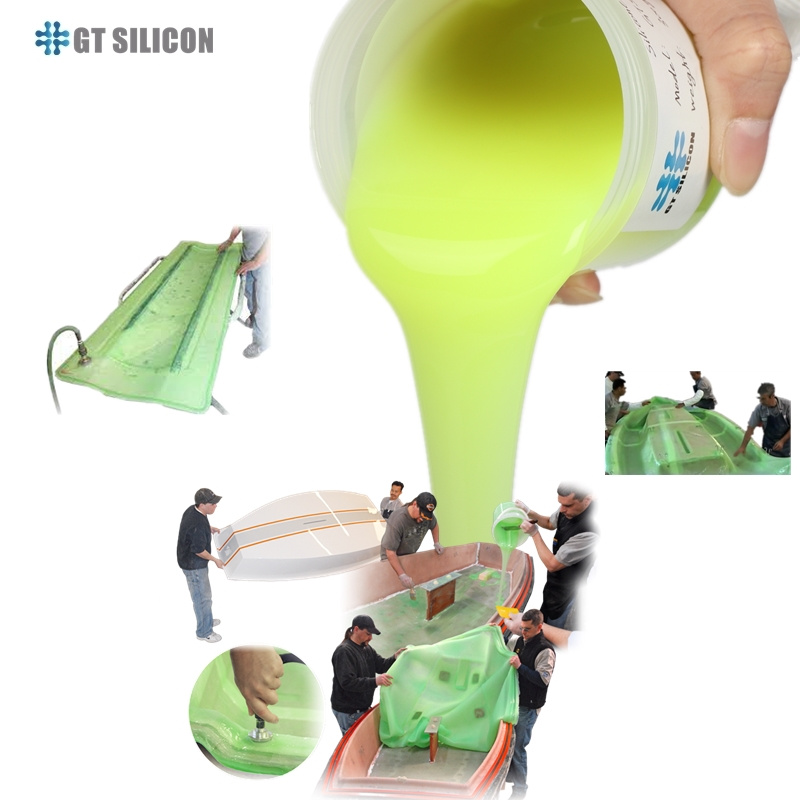

Vacuum Silicone Bag Making Htv Liquid Silicone Rubber

Advanced Vacuum Bagging Elastomer for Composite Manufacturing
Our specialized High-Temperature Vulcanizing (HTV) Liquid Silicone Rubber represents a breakthrough in vacuum bagging technology, engineered specifically for composite manufacturing processes requiring exceptional dimensional stability and minimal contamination risk. This advanced two-component system delivers unparalleled performance in demanding aerospace, automotive, and wind energy applications where vacuum integrity and material purity are critical to finished product quality.

Precision Engineering for Composite Applications

• Superior Vacuum Integrity: Demonstrated vacuum retention of <1 mbar/hour loss at 180°C, maintaining consistent pressure throughout cure cycles

• Exceptional Thermal Performance: Continuous service temperature from -65°C to 280°C with short-term exposure capability to 320°C without degradation

• Low Outgassing Characteristics: Total Mass Loss (TML) <0.3% and Collected Volatile Condensable Materials (CVCM) <0.01% meeting NASA and ESA space requirements

• Optimized Rheological Properties: Controlled viscosity of 12,000-18,000 mPa·s enables uniform application without sagging on vertical surfaces

Critical Performance Characteristics

• Compression Set Resistance: <5% permanent deformation after 168 hours at 200°C (ASTM D395 Method B)

• Tear Strength Excellence: 38 kN/m tear resistance (ASTM D624 Die B) prevents bag failure during complex layup procedures

• Low Gas Permeability: Oxygen transmission rate <50 cm³/m²·day·bar at 25°C ensures superior vacuum maintenance

• Thermal Stability: Weight loss <0.5% after 1000 hours at 250°C (TGA analysis)

Industry-Specific Applications

• Aerospace Composite Manufacturing: Autoclave-cured structural components, radomes, and interior panels requiring precise vacuum control

• Automotive Composite Production: Carbon fiber body panels, structural reinforcements, and specialty components

• Wind Energy Components: Rotor blade manufacturing with extended vacuum hold times and elevated temperature curing

• Marine & Defense Applications: Hull components, armored panels, and specialized composite structures

• Sporting Goods Production: High-performance bicycle frames, tennis rackets, and protective equipment

Processing Advantages

• Extended Pot Life: 90-minute working time at 25°C allows complex bagging operations without premature curing

• Rapid Cure Kinetics: Full cure achieved in 45 minutes at 150°C, optimizing production cycle times

• Excellent Substrate Adhesion: Strong bonding to release films, breather materials, and sealant tapes without primers

• Easy Demolding & Cleanup: Controlled adhesion properties allow clean separation from finished composites

Quality & Compliance Assurance

• Industry Certifications: NADCAP compliant manufacturing, ISO 9001:2015 quality systems, and material traceability

• Consistent Performance: Batch-to-batch consistency with viscosity control within ±5% and cure time variation <3%

• Material Purity: Certificates of Analysis provided with each shipment including rheological and cure characteristics

• Technical Support: Comprehensive application engineering support and processing parameter optimization

Economic & Operational Benefits

• Reduced Material Waste: Precise viscosity control and extended pot life minimize application losses

• Extended Service Life: Superior heat aging characteristics provide 3-5 times longer service life than conventional bagging materials

• Process Efficiency: Reduced autoclave cycle times through optimized cure kinetics

• Quality Improvement: Consistent vacuum integrity reduces part reject rates and rework requirements

Technical Support & Customization

• Application-Specific Formulations: Tailored viscosity, cure speed, and thermal performance for unique process requirements

• Color Coding Options: Multiple color availability for process control and identification

• Technical Documentation: Complete processing guides, safety data, and application specifications

• Validation Support: Material testing and process validation services available
